In the context of industrial dust removal, "bag filter dust" is not a specific chemical substance, but a general term for all solid particles intercepted by the dust filter bag in the baghouse. When the dust-laden airflow passes through a cylindrical filter bag made of polyester, PPS, glass fiber or aramid fiber at a filtering wind speed of 0.5–2.0 m/min, the dust is retained on the surface of the bag wall and in the internal pores due to multiple mechanisms such as inertial collision, screening, and electrostatic adsorption. Over time, a layer of bag filter dust with "powder cake" as the core is formed.
The properties of bag filter dust produced by different industries vary greatly: fly ash from coal-fired boilers is gray and spherical, with a particle size of 1–50 µm, containing SiO₂ and Al₂O₃; cement kiln dust is alkaline and easy to absorb moisture and agglomerate; the iron oxide powder in the metallurgical industry is hard and angular; and the dust captured in pharmaceutical and food workshops may be active drugs or starch particles. The resistivity, moisture content, and flammability of these dusts will reversely determine the selection of filter bags - anti-static, coating, oil-proof and waterproof or high-temperature resistant surface treatment, all of which are to make the Dust Filter Bag "embrace" these dusts more efficiently and safely.
Dust Filter Bag's mission: not just "filtering"
Emission compliance: Most countries in the world have written PM10, PM2.5 or total dust concentration limits into regulations. A well-designed Dust Filter Bag can reduce the inlet dust of 10–50 g/Nm³ to ≤10 mg/Nm³, ensuring that the chimney does not emit "yellow dragons".
Protect downstream equipment: Setting up bag filters before pneumatic conveying, gas turbines or SCR denitrification systems can avoid dust wear, blockage of catalyst layers, and extend the life of expensive equipment.
Resource recovery: In processes such as precious metal smelting, rare earth polishing powder, and lithium battery positive electrode materials, bag filter dust itself is a high-value product. The dust is stripped from the surface of the filter bag by pulse spraying or mechanical vibration, and returned to the production process through the ash hopper and screw conveyor, realizing "dust to dust, gold to gold".
Maintaining occupational health: If the dust concentration in the workshop exceeds 1-3 mg/m³, workers will suffer from pneumoconiosis if exposed for a long time. The Dust Filter Bag seals the dust in the closed pipe and bag chamber, providing an invisible "dust shield" for workers.

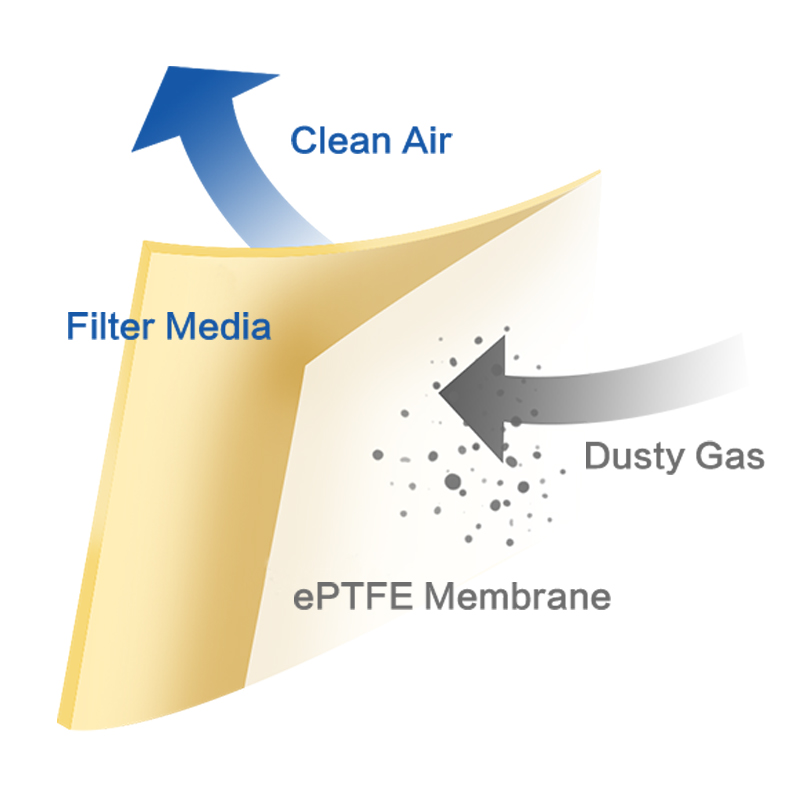

Energy saving and process optimization: The surface of modern filter bags is covered with PTFE membrane, which can maintain high air permeability at a lower pressure difference (800-1200 Pa), and the power consumption of the fan is reduced by 10%-30%; at the same time, the stable pressure difference signal can be linked with the variable frequency fan and intelligent dust cleaning system to achieve "dust removal on demand".
From "ash" to "treasure": the fate of bag filter dust
Capture is only the first step, and subsequent treatment determines its final fate. Cement plants mix kiln dust back into raw materials; thermal power plants sell fly ash to concrete mixing plants as mineral admixtures; rare metal smelters send bagged dust enriched with indium and germanium to hydrometallurgical workshops. It can be said that a Dust Filter Bag is not only a fiber barrier, but also a "resource sorter".
Bag filter dust is the "exiled" particles in the industrial process, and the Dust Filter Bag is the "gatekeeper" that gives them a second life. Through exquisite fiber structure, surface engineering and intelligent cleaning, the filter bag not only protects the blue sky and white clouds, but also protects the health of workers and corporate profits. When the dust condenses into ash outside the bag wall and is reawakened as a resource in the ash hopper, we truly understand the full meaning of the Dust Filter Bag: it is not only a filter element, but also the starting point of the circular economy.
